What is a Layer 3 MPLS VPN and why to use it?

Layer 3, or VPRN (virtual private routed network), utilizes layer 3 VRF (VPN/virtual routing and forwarding) to segment routing tables for each customer utilizing the service. The customer peers with the service provider router and the two exchange routes, which are placed into a routing table specific to the customer. Multiprotocol BGP (MP-BGP) is required in the cloud to utilize the service, which increases complexity of design and implementation. L3 VPNs are typically not deployed on utility networks due to their complexity; however, a L3 VPN could be used to route traffic between corporate or datacenter locations.

In the example below we will configure three MPLS service provider routers (PEs), two routers for customer 1 (CE), and two additional routers for Customer 2 (CE). The service provider MPLS network will run a basic OSPF configuration and all customer routers will participate in BGP to reach their other sites. Both customer 1 and customer 2 must be provisioned a VRF instance to facilitate a virtual private network across the MPLS cloud.

Steps to configure a Layer 3 MPLS VPN

Step 1: Configure PE-R1, PE-R2, and PE-R3 interfaces and OSPF to establish basic connectivity. We will also create a loopback interface to serve as as the router-id for the OSPF process and LDP and configure the applicable interfaces for dynamic MPLS forwarding.

PE-R1(config)#interface Loopback0
PE-R1(config-if)#ip address 1.1.1.1 255.255.255.255
!
PE-R1(config)#interface FastEthernet0/1
PE-R1(config-if)#ip address 13.13.13.1 255.255.255.252
PE-R1(config-if)#mpls ip
!
PE-R1(config)#interface FastEthernet1/1
PE-R1(config-if)#ip address 23.23.23.2 255.255.255.252
PE-R1(config-if)#mpls ip
!
PE-R1(config)#router ospf 100
PE-R1(config-router)#router-id 1.1.1.1
PE-R1(config-router)#network 1.1.1.1 0.0.0.0 area 0
PE-R1(config-router)#network 13.13.13.0 0.0.0.3 area 0
PE-R1(config-router)#network 23.23.23.0 0.0.0.3 area 0
PE-R2(config)#interface Loopback0
PE-R2(config-if)#ip address 2.2.2.2 255.255.255.255
!
PE-R2(config)#interface FastEthernet0/1
PE-R2(config-if)#ip address 23.23.23.1 255.255.255.252
PE-R2(config-if)#mpls ip
!
PE-R2(config)#router ospf 100
PE-R2(config)#router-id 2.2.2.2
PE-R2(config)#network 2.2.2.2 0.0.0.0 area 0
PE-R2(config)#network 23.23.23.0 0.0.0.3 area 0
PE-R3(config)#interface Loopback0
PE-R3(config-if)#ip address 3.3.3.3 255.255.255.255
!
PE-R3(config)#interface FastEthernet0/1
PE-R3(config-if)#ip address 13.13.13.2 255.255.255.252
PE-R3(config-if)#mpls ip
!
PE-R3(config)#router ospf 100
PE-R3(config-router)#router-id 3.3.3.3
PE-R3(config-router)#network 3.3.3.3 0.0.0.0 area 0
PE-R3(config-router)#network 13.13.13.0 0.0.0.3 area 0

Step 2: Forcibly change the LDP router id on PE-R1, PE-R2, and PE-R3.

PE-R1(config)#mpls ldp router-id Loopback0 force
PE-R2(config)#mpls ldp router-id Loopback0 force
PE-R3(config)#mpls ldp router-id Loopback0 force

Step 3: Configure vrf vpn-101 for Customer 1 on PE-R1 and vrf vpn-102 for Customer 2 PE-R3 and PE-R1 and PE-R2. We will also enable the VRF on the applicable interfaces and configure an IP address on the interfaces as well.

PE-R1(config)#ip vrf vpn-101
PE-R1(config-vrf)#rd 65000:101
PE-R1(config-vrf)#route-target export 65000:101
PE-R1(config-vrf)#route-target import 65000:101
!
PE-R1(config)#ip vrf vpn-102
PE-R1(config-vrf)#rd 65000:102
PE-R1(config-vrf)#route-target export 65000:102
PE-R1(config-vrf)#route-target import 65000:102
!
PE-R1(config)#interface FastEthernet0/0
PE-R1(config-if)#ip vrf forwarding vpn-101
PE-R1(config-if)#ip address 10.1.0.1 255.255.255.252
!
PE-R1(config)#interface FastEthernet1/0
PE-R1(config-if)#ip vrf forwarding vpn-102
PE-R1(config-if)#ip address 10.3.0.1 255.255.255.0
PE-R2(config)#ip vrf vpn-102
PE-R2(config-vrf)#rd 65000:102
PE-R2(config-vrf)#route-target export 65000:102
PE-R2(config-vrf)#route-target import 65000:102
!
PE-R2(config)#interface FastEthernet0/0
PE-R2(config-if)#ip vrf forwarding vpn-102
PE-R2(config-if)#ip address 10.4.0.1 255.255.255.0
PE-R3(config)#ip vrf vpn-101
PE-R3(config-vrf)#rd 65000:101
PE-R3(config-vrf)#route-target export 65000:101
PE-R3(config-vrf)#route-target import 65000:101
!
PE-R3(config)#interface FastEthernet0/0
PE-R3(config-if)#ip vrf forwarding vpn-101
PE-R3(config-if)#ip address 10.2.0.1 255.255.255.252

Step 4: Next configure a BGP process on PE-R1, PE-R2, and PE-R3 to facilitate advertisements of customer networks over the MPLS network.

PE-R1(config)#router bgp 65000
PE-R1(config-router)#bgp log-neighbor-changes
PE-R1(config-router)#neighbor 2.2.2.2 remote-as 65000
PE-R1(config-router)#neighbor 2.2.2.2 update-source Loopback0
PE-R1(config-router)#neighbor 3.3.3.3 remote-as 65000
PE-R1(config-router)#neighbor 3.3.3.3 update-source Loopback0
!
PE-R1(config-router)#address-family vpnv4
PE-R1(config-router-af)#neighbor 2.2.2.2 activate
PE-R1(config-router-af)#neighbor 2.2.2.2 send-community extended
PE-R1(config-router-af)#neighbor 3.3.3.3 activate
PE-R1(config-router-af)#neighbor 3.3.3.3 send-community extended
!
PE-R1(config-router)#address-family ipv4 vrf vpn-101
PE-R1(config-router-af)#redistribute connected
PE-R1(config-router-af)#neighbor 10.1.0.2 remote-as 65011
PE-R1(config-router-af)#neighbor 10.1.0.2 activate
!
PE-R1(config-router)#address-family ipv4 vrf vpn-102
PE-R1(config-router-af)#redistribute connected
PE-R1(config-router-af)#neighbor 10.3.0.2 remote-as 65022
PE-R1(config-router-af)#neighbor 10.3.0.2 activate
PE-R2(config)#router bgp 65000
PE-R2(config-router)#bgp log-neighbor-changes
PE-R2(config-router)#neighbor 1.1.1.1 remote-as 65000
PE-R2(config-router)#neighbor 1.1.1.1 update-source Loopback0
!
PE-R2(config-router)#address-family vpnv4
PE-R2(config-router-af)#neighbor 1.1.1.1 activate
PE-R2(config-router-af)#neighbor 1.1.1.1 send-community extended
!
PE-R2(config-router)#address-family ipv4 vrf vpn-102
PE-R2(config-router-af)#redistribute connected
PE-R2(config-router-af)#neighbor 10.4.0.2 remote-as 65021
PE-R2(config-router-af)#neighbor 10.4.0.2 activate
PE-R3(config)#router bgp 65000
PE-R3(config-router)#bgp log-neighbor-changes
PE-R3(config-router)#neighbor 1.1.1.1 remote-as 65000
PE-R3(config-router)#neighbor 1.1.1.1 update-source Loopback0
!
PE-R3(config-router)#address-family vpnv4
PE-R3(config-router-af)#neighbor 1.1.1.1 activate
PE-R3(config-router-af)#neighbor 1.1.1.1 send-community extended
!
PE-R3(config-router)#address-family ipv4 vrf vpn-101
PE-R3(config-router-af)#redistribute connected
PE-R3(config-router-af)#neighbor 10.2.0.2 remote-as 65012
PE-R3(config-router-af)#neighbor 10.2.0.2 activate

Steps to configure Customer 1 CE devices

Step 5: Configure Customer 1 CE-R1 and CE-R2 with a basic configuration and make use of BGP for dynamic routing.

CE-R1(config)#interface FastEthernet0/0
CE-R1(config-if)#ip address 10.1.0.2 255.255.255.252
!
CE-R1(config-if)#interface FastEthernet0/1
CE-R1(config-if)#ip address 192.168.1.1 255.255.255.0
!
CE-R1(config-if)#router bgp 65011
CE-R1(config-router)#bgp log-neighbor-changes
CE-R1(config-router)#network 10.1.0.0 mask 255.255.255.252
CE-R1(config-router)#network 192.168.1.0
CE-R1(config-router)#neighbor 10.1.0.1 remote-as 65000
CE-R2(config)#interface FastEthernet0/0
CE-R2(config-if)#ip address 10.2.0.2 255.255.255.252
!
CE-R2(config-if)#interface FastEthernet0/1
CE-R2(config-if)#ip address 192.168.2.1 255.255.255.0
!
CE-R2(config-if)#router bgp 65012
CE-R2(config-router)#bgp log-neighbor-changes
CE-R2(config-router)#network 10.2.0.0 mask 255.255.255.252
CE-R2(config-router)#network 192.168.2.0
CE-R2(config-router)#neighbor 10.2.0.1 remote-as 65000

Steps to configure Customer 2 CE devices

Step 7: Configure Customer 1 CE-R1 and CE-R2 with a basic configuration and make use of BGP for dynamic routing.

CE-R3(config)#interface FastEthernet0/0
CE-R3(config-if)#ip address 10.3.0.2 255.255.255.0
!
CE-R3(config-if)#interface FastEthernet0/1
CE-R3(config-if)#ip address 172.16.2.1 255.255.255.0
!
CE-R3(config-if)#router bgp 65022
CE-R3(config-router)#bgp log-neighbor-changes
CE-R3(config-router)#network 10.3.0.0 mask 255.255.255.0
CE-R3(config-router)#network 172.16.2.0 mask 255.255.255.0
CE-R3(config-router)#neighbor 10.3.0.1 remote-as 65000
CE-R4(config)#interface FastEthernet0/0
CE-R4(config-if)#ip address 10.4.0.2 255.255.255.0
!
CE-R4(config-if)#interface FastEthernet0/1
CE-R4(config-if)#ip address 172.16.1.1 255.255.255.0
!
CE-R4(config-if)#router bgp 65021
CE-R4(config-router)#bgp log-neighbor-changes
CE-R4(config-router)#network 10.4.0.0 mask 255.255.255.0
CE-R4(config-router)#network 172.16.1.0 mask 255.255.255.0
CE-R4(config-router)#neighbor 10.4.0.1 remote-as 65000

Verify the configuration

Now that the configuration is finished lets verify our neighbors and routes. Using the show ip bgp vpnv4 all command you can verify the BGP routes distributed and to which VRF they belong.

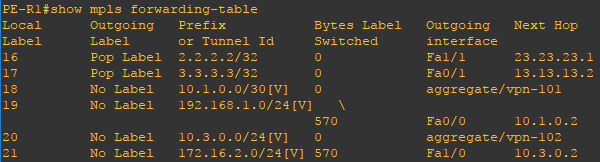

Using the show mpls forwarding-table command you can verify the mpls topology.
